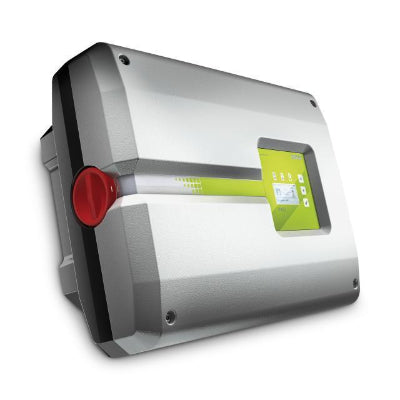

KOSTAL PIKO 36 EPC: Smart Power – Optimised costs and high levels of safety
PIKO 36 EPC inverter - ideal for your projects
You will see photovoltaic systems on private homes but they are also increasingly being used by companies. Many businesses use large amounts of power and see that there is significant potential for saving money by generating their own energy.
Smart Project Design
- Optimised generator design with system voltage of up to 1,100 V
- Integrated KOSTAL Smart AC Switch takes the place of the external circuit breaker
- KOSTAL Smart DC Guard protects the generator. Loss-free and requires no maintenance. No need for string fuses.
- Simple DC installation at an attractive cost without any string distribution boxes
- Generator is disconnected on site by integrated DC voltage separator
- Over-assignment of up to 50% (DC to AC) permits flexible generator design
Smart Performance
- Maximum energy yield thanks to high certified efficiency (>98%)
- In the event of an error, individual strings are shut down to maintain high availability
- The connected PV strings are monitored in pairs for optimum monitoring and service
- Integrated, certified grid service functions ensure reliable operation
Smart Connected
- Simple communication (daisy chain) via dual LAN interface (RJ45) with integrated switch
- Tried and tested communication via RS485 bus integrated as standard
- Compatible with many plant controllers and data loggers, so you can use the monitoring system you prefer
- Integrated data loggers back system information up at all times
Smart Installation
- Optimum protection from dust and water for tough outdoor use (protection class IP65)
- Low weight for simple transport and installation
- Quick, uncomplicated, and tool‑free AC and DC installation
- Prepared for protection against overvoltage on the AC, DC and communication side
- Cost-optimised 4-wire AC connection, no neutral wire
