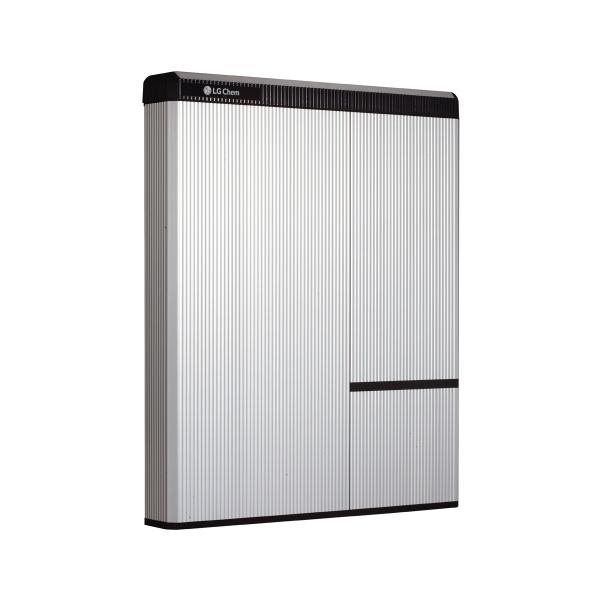

LG Chem RESU 10H Type-C 400V lithium-ion battery

LG Chem RESU 10H Type-C 400V - High Voltage 400V lithium-ion 9.8 kWh storage system battery for SMA Sunny Boy Storage

Optimized Solution for Energy Saving & High-quality Power

Energy Storage System(ESS) stores electric energy and utilize them for later consumption. It is purposed to improve energy efficiency, by enhancing the quality of renewable energy that results stabilization of power supply system. LG Chem provides most optimal energy solution for the users using our state-of-the-art energy storage system with a long lifespan and a top-notch quality.

Technical details:

• Total power: 9.8 kWh
• Usable energy: 9.3 kWh
• Voltage range DC (V): 350 - 450 I 430 V - 550 V
• Nominal capacity: 63 Ah
• Max. Power (kW): 5.0
• Peak power (kW) (for 10 seconds): 7.0
• Dimensions (L x H x D, mm): 744 x 907 x 206
• Weight (kg): 97 / 99.8
• Housing protection: IP55
• Communication: RS485 and CAN 2.0 B
• Certificate Cell: UL1642
• Certificate Product: TUV (IEC 62619) / UL1973 / CE

Powerful Performance

The new RESU series features industry-leading continuous power and DC round-trip efficiency(95%). LG Chem’s L&S (Lamination & Stacking) technology provides durability ensuring 80% of capacity retention after 10 years.

Compact Size & Easy Installation

The compact and lightweight nature of the RESU is world-class. It is designed to allow easy wall-mounted or floor-standing installation for both indoor and outdoor applications. The inverter connections have also been simplified, reducing installation time and costs.

Proven Safety

LG Chem places the highest priority on safety and utilizes the same technology for its ESS products that has a proven safety record in its automotive battery. All products are fully certified in relevant global standards.

• 9.8 kWh gross capacity (usable energy 9.3 kWh)
• Released for SolarEdge StorEdge, SMA Sunny Boy Storage and Fronius Symo Hybrid solar inverters
• Light weight and integrated handles for transport
• 10 years LG Chem manufacturing guarantee
• Easy and fast installation
• LG RESU Storage units are rated to 6000 cycles

ESS for household use

• Self-sufficient power generation/consumption for solar PV installed households
• Night time use of stored solar energy
• Reducing electricity bill

Compatible Inverter Brands:

• SMA Sunny Boy Storage
• SolarEdge - StorEdge
• Fronius Symo Hybrid
